FUSEBOX 1982



FUSEBOX 1986-1990
by Lorne Goldman

This is the first of the Morgan "modern" fuseboxes. It is difficult to pinpoint its exact dates as Morgan went through a transition era at both its debut and its finale where cars would be fit with what was available that day from the local motor factor on Worcester Road. To further complicate matters, it was fit to the EFI Plus 8s first at a time they were still making carb Plus 8s.  In any event, they are impossible to confuse with earlier boxes (which contained only a small handful of fuses. However, it is not a very robust affair and could have been replaced after becoming defective over the last 25 years.


WATCHPOINT: The internal busing of these boxes breaks down over time, something tricky to diagnose. The wiring might seem perfect but a component will, strangely, not work. One can patch in power from another source in the fusebox (either ignition or battery connected) or use an inline fuse. But such boxes keep on getting worse. I have decided to bite the bullet and install a better quality, better chosen fuse box and wiring, aside from the EFI loom which is Land Rover and excellent. If you want help or a better explanation, contact me




WATCHPOINT: From this fusebox on, the fuseboxes became internally bussed. Most automobile fuse boxes since the 1980s have internal busses. (God knows where they find these automobiles terms!) A "bus", in auto electric lingo, is an internal conductor that make a mutual connection between several fuse positions. For example, if you have a number of components that  should operate with the ignition key on only, (coil, fuel pump, windscreen wipers etc) why have a separate power wire to the fuse pox for each of them? It is a waste of wire and the more unnecessary wires you have in a car the more mistakes that you can cause.

With a bussed fused box, you simply join the power side of similarly operating components with a internal bus. Bingo, one power feed to the power side of any of them, and they will all have a power feed. Of course, if you, by mistake, put in a feed for something else into a position attached to that bus, you now have two feeds for everything on that bus.

So it is VERY important to know where these busses are in the box. Morgan does not provide a diagram that shows this and the Factory people do not know where they are either. The result is sad. Someone installs a radio, they bring in power from the battery for its clock and memory settings and they install its fuse in a fusebox position.  Then they can't figure why their battery keep draining or their wipers won't turn off when they turn off the ignition key.

I do not have the diagrams of the internal busses of the three primary fuseboxes from 1986 to 2012. However, they can be ascertained with the use of a multimeter and an unwired box. Check the continuity between the power sides of the fuse positions.

FUSEBOX (1990 to 2004) from Morgan +8 R10432

WATCHPOINT: I am not sure of the exact dates on these. Waiting for more feedback. Can you help?




LH SIDE/LAMPS
DASH LAMPS
SWITCH LAMPS
5A
2
RH SIDE LAMPS
5A
3
REAR FOG
FRONT SPOT
10A
4
LH HEADLAMP
LO BEAM
10A
5
RH HEADLAMP
LO BEAM
10A
6
LH HEADLAMP
HI BEAM
10A
7
RH HEADLAMP
HI BEAM
10A
8
Hazard
10A
9
HORN
15A
10
RAD FAN
15A
11
IGNITION
RADIO CLOCK
10A
12
GAUGE POWER
5A
13
BRAKE LIGHTS
10A
14
REVERSE LIGHTS
10A
15
COIL
7.5A
16
HEATER FAN
15A
17
WIPERS
10A
18
TURN SIGNALS
7.5A
19
FUEL PUMP
10A
20
EMPTY

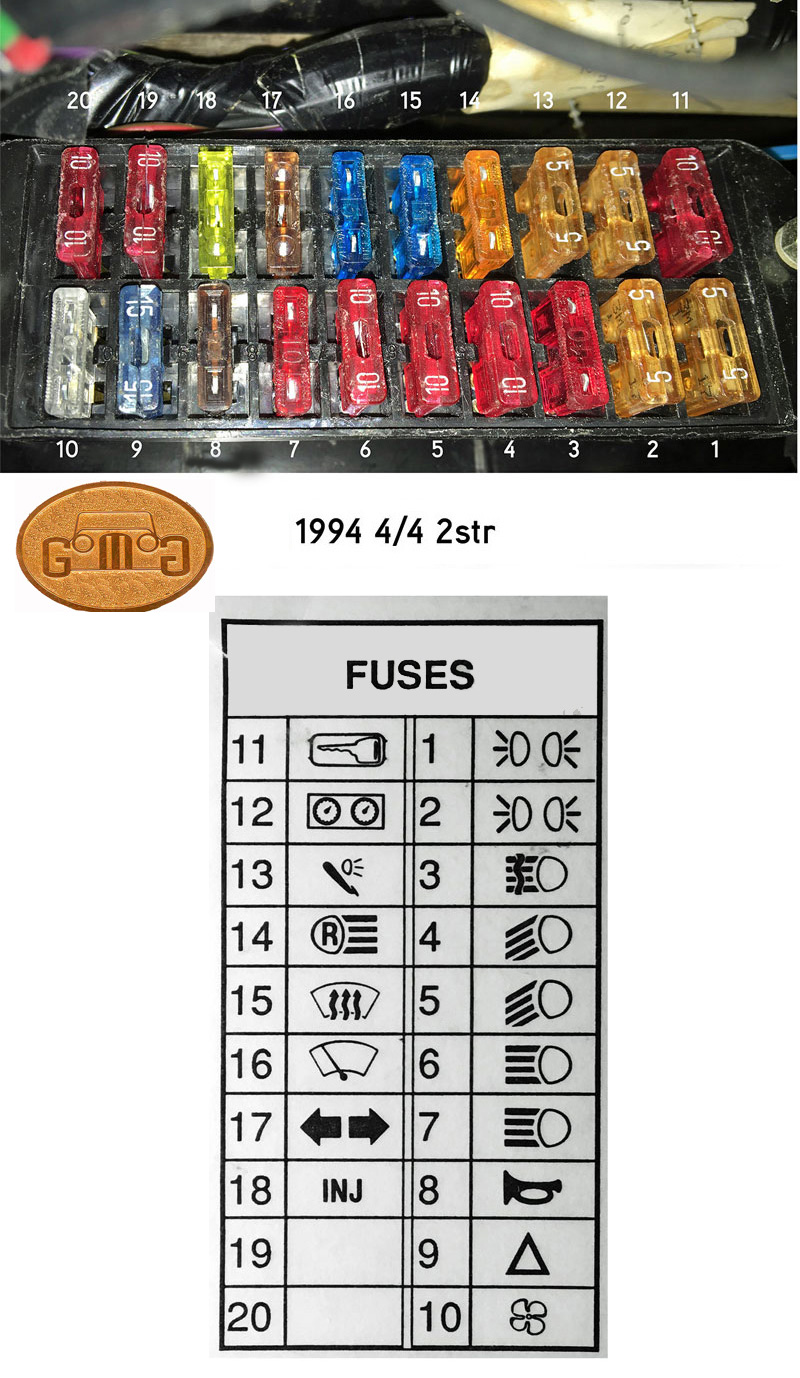

FUSEBOX 4/4 1994
by Peter Moloney

Oriented looking upwards from below the dash.

FUSEBOX PLUS 8 2004
